SU3616 Tan 30mm QD cantilever Picatinny scope mount

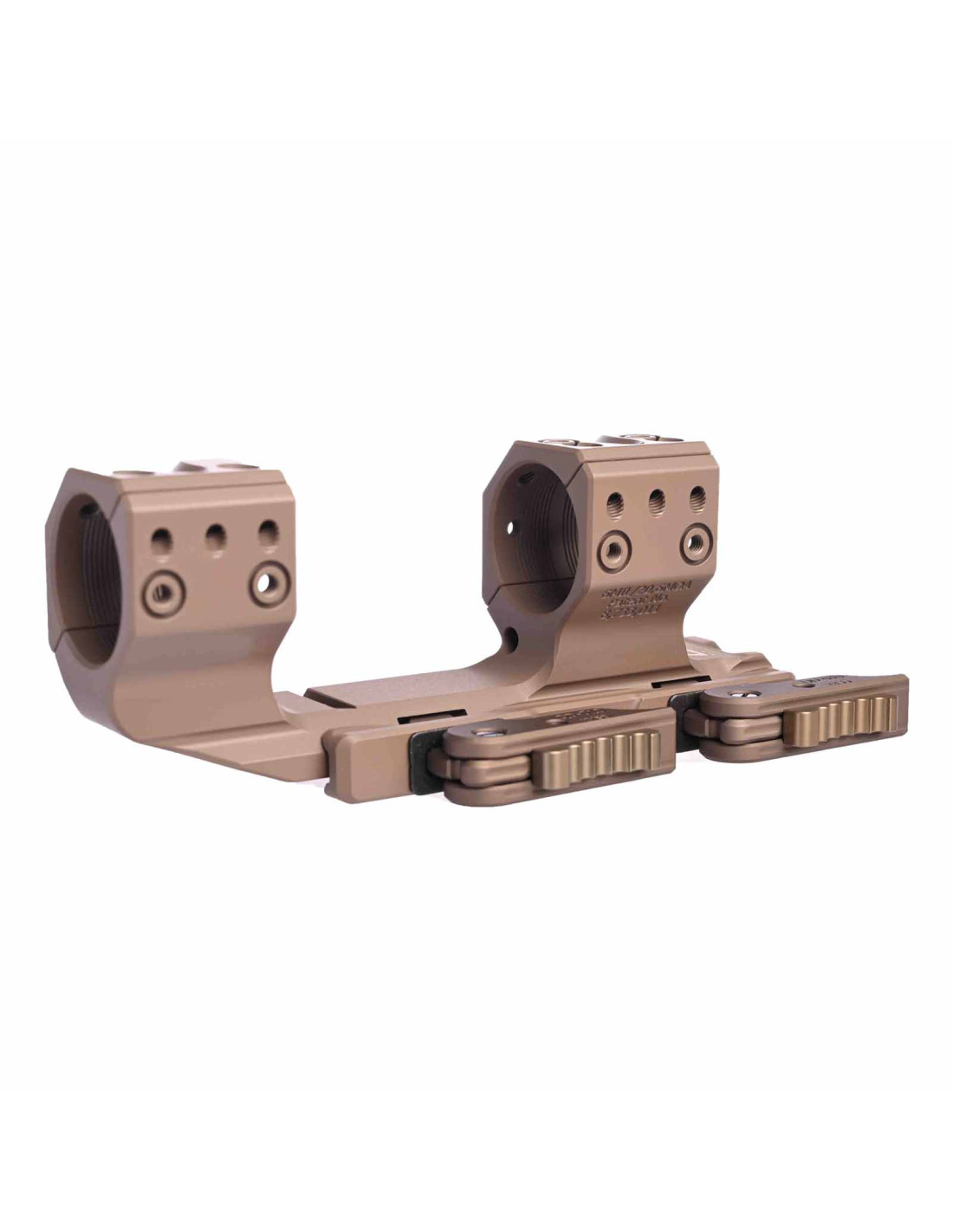

SU3616 Tan 30mm QD cantilever Picatinny scope mount is a one piece mount built to secure a 30mm tube optic on a Picatinny rail. This version features a Tan (FDE style) finish on the main mount body and includes a black T2 red dot mount in the box. The cantilever geometry shifts the scope forward to help you achieve comfortable eye relief while preserving rear rail space for backup sights or accessories. Dual QD levers allow fast, tool free removal and reattachment for transport, maintenance, or swapping optics between setups.

QD cantilever design for Picatinny rails

The monolithic body keeps both 30mm rings aligned and helps reduce alignment issues compared with separate rings. Clamping is handled by dual QD levers, supported by opposite side tension screws so you can fine tune clamping force to match rail tolerances. This adjustability is especially useful when rails vary slightly between platforms.

Forward offset for better eye relief

The cantilever provides about 40mm (1.57”) of forward offset, making it easier to position LPVOs and other optics that need extra eye relief. It also supports a natural head position and consistent cheek weld on flat top rails.

38mm 1.5in height and 6 MIL 20.6 MOA tilt

The SU3616 is specified with a 38mm (1.5”) centerline height and a built in 6 MIL (20.6 MOA) tilt. This tilt can help preserve elevation adjustment range on distance oriented optics, while the 1.5in height is a common standard for comfortable alignment on many carbine style platforms.

Key specifications

• Ring diameter: 30mm
• Interface: Picatinny rail (1913)
• Centerline height: 38mm (1.5”)
• Forward offset: 40mm (1.57”)
• Tilt: 6 MIL (20.6 MOA)
• Length (mount body): 151mm (5.94”)
• Weight: 270g (9.5oz)
• Finish: Tan hardcoat anodized body + black T2 mount

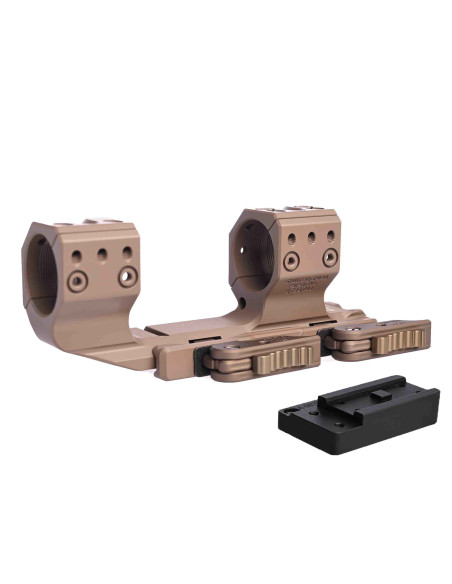

Black T2 mount included with 7 mounting positions

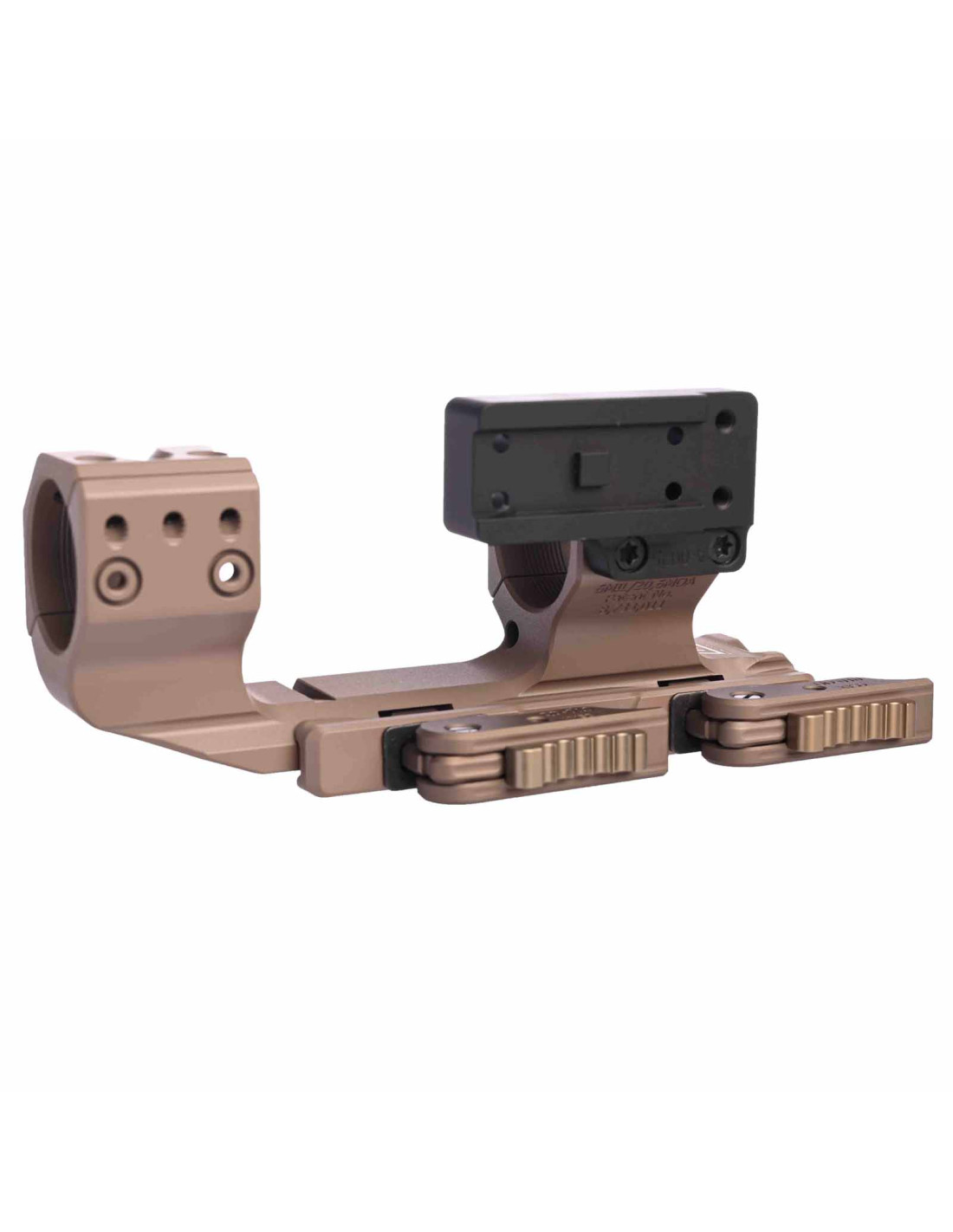

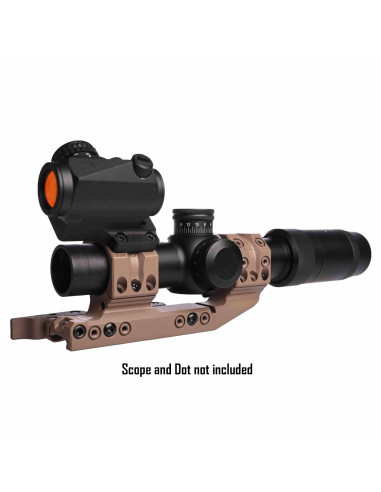

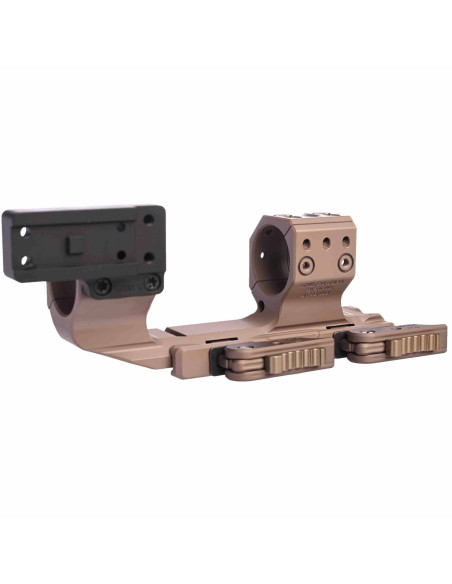

The package includes a black T2 red dot mount to create a hybrid setup: your 30mm optic plus a compact red dot on the same system. The T2 mount can be installed in no fewer than 7 different positions on the SU3616 base, allowing you to tune placement forward, rearward, or in between for clearance around turrets, caps, and zoom ring operation.

Why multiple positions matter

• Faster transitions between magnified optic and red dot
• Better clearance around scope controls and accessories
• Flexible placement for different rail layouts

Compatibility and setup tips

SU3616 Tan 30mm QD cantilever Picatinny scope mount fits 30mm scope tubes and Picatinny rails. It is not intended for 1 inch, 34mm, or 35mm tubes. For best results, level the optic, tighten ring screws evenly, and set QD lever tension so it closes firmly without excessive force. After initial use, recheck level and screw tightness.

Box contents

Included

• SU3616 Tan one piece QD cantilever 30mm mount
• Black T2 red dot mount
• 10 degree wedge (depending on pack)

List of compatibilities for Red Dots already installed on the DOT mount.

Vortex : Crossfire

Tokyo Marui MTD

Aimpoint Comp M5

Impact Arms AIM5
