VFC Umarex GBBR Magazine Inlet Valve M5 Thread

VFC Umarex GBBR Magazine Inlet Valve M5 Thread is a key maintenance part for restoring a gas magazine that starts leaking, filling poorly, or losing pressure between games. On any GBB or GBBR platform, magazine sealing is what drives consistency: stable pressure means predictable cycling, better shot to shot performance, and fewer annoying “empty” magazines after only a short time in storage. Replacing a worn valve is often the quickest way to bring a magazine back to reliable service.

What an inlet valve does on a gas magazine

The inlet valve (also called a fill valve, inject valve, or charging valve) is the interface between your gas can and the magazine reservoir. When you press the gas nozzle onto the fill port, the valve opens under pressure, then closes immediately to trap the gas inside. A healthy o ring is critical here: even a small crack or flattened seal can create slow leaks that drain the magazine over hours or days.

Common signs the valve needs replacement

• Hissing or visible bubbling during a soapy water leak test
• Gas venting back out while attempting to fill
• Pressure drops quickly even after a full fill
• Inconsistent cycling because the magazine is not holding stable pressure

Material, sealing and thread

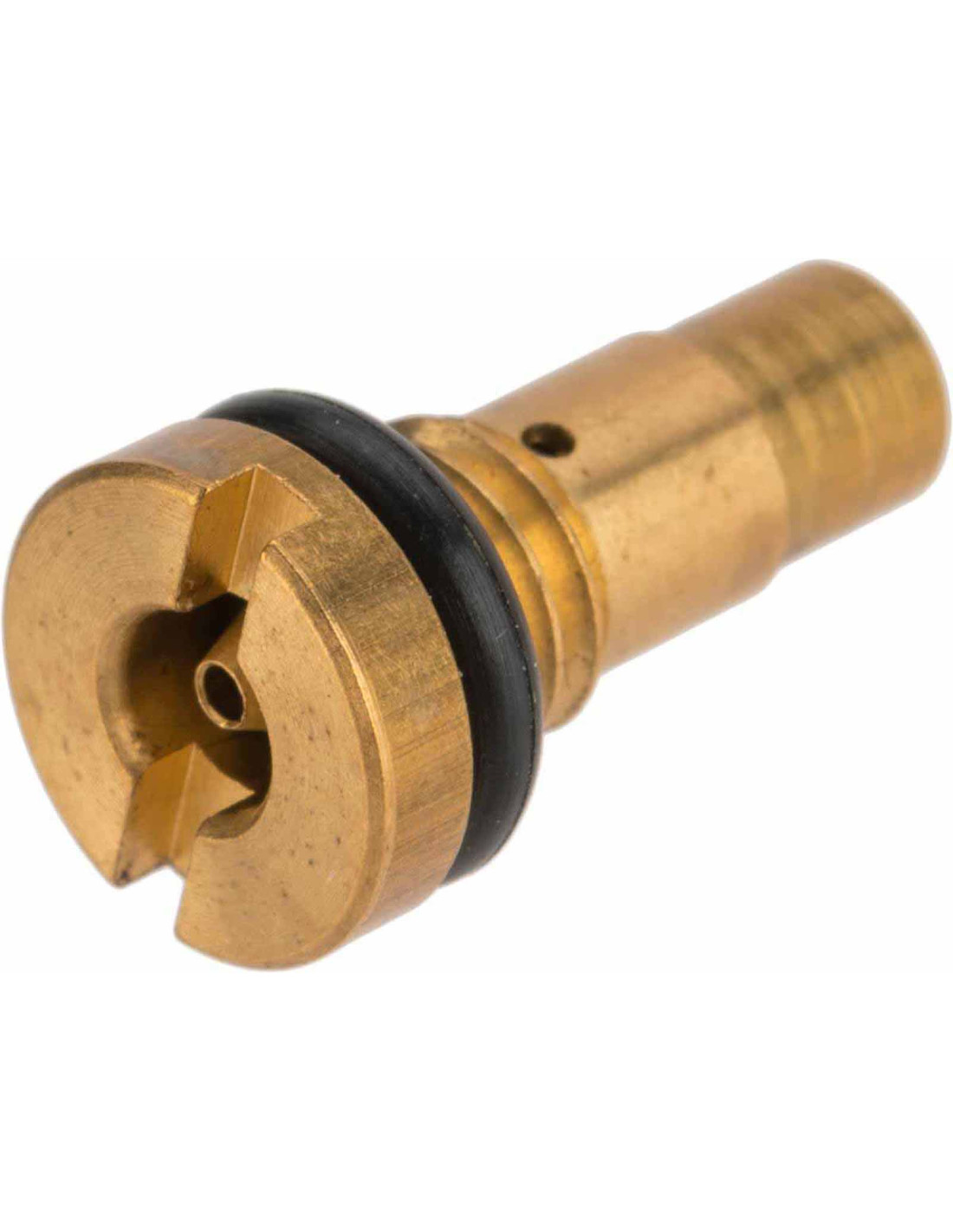

This VFC Umarex GBBR Magazine Inlet Valve M5 Thread features a brass construction with a gold finish, chosen for durability and good sealing surfaces. The M5 thread matches the common VFC magazine valve standard, making it a straightforward swap when you are replacing the original part.

O ring care to prevent leaks

The integrated o ring is what keeps the system tight once you remove the gas can. During installation, clean the valve seat, check that the sealing surface is free of dirt, and apply a very small amount of silicone oil to the o ring. Avoid over tightening: firm contact is enough, and excessive torque can damage the seal or the brass.

VFC Umarex compatibility and installation notes

This valve is intended for VFC/Umarex gas blowback magazines, especially the Umarex M4, HK416, and M733 GBBR series. It is not designed for unrelated GBBR valve systems and it will not fit AEG magazines. If you are unsure, compare the original valve shape and thread before ordering.

Basic install workflow

1. Fully vent the magazine in a safe, well ventilated area.
2. Use a proper valve key to unscrew the old valve without rounding it.
3. Clean the threads and the sealing area, then inspect the o ring groove.
4. Install the new valve, lightly lubricate, and tighten to a snug fit.
5. Refill and test: confirm there is no leak over the next 10–15 minutes.

Why this replacement part makes sense

Keeping your original magazines and replacing only the wear parts is cost effective and reduces downtime. With its M5 thread and brass body, this inlet valve is a practical replacement for compatible VFC/Umarex magazines, helping you achieve cleaner fills, fewer leaks, and more consistent gas capacity for your loadout.
